| Model | CDC-F-400 | CDC-F-500 | CDC-F-600 | CDC-F-800 |
| Size(W*D*H) | 600*470*1000 | 700*570*1100 | 800*670*1200 | 1000*870*1400 |
| Inner size(W*D*H) | 400*400*400 | 500*500*500 | 600*600*600 | 800*800*800 |
| Filter size mm | 320*320*69 | 385*385*69 | 484*484*69 | 610*610*69 |
| HEPA filter | 99.99%@0.3 μm | |||
| Noise | ＜65dB | |||
| Showing time | 0-999s adjustable | |||
| Voltage | AC 220V/50HZ | |||

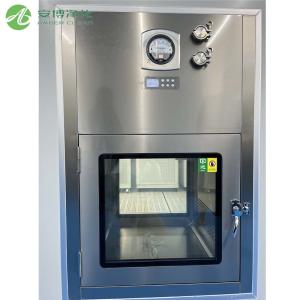

The cleanliness of the air and minimizing cross-contamination are the important features of material movement between cleanrooms and non-clean environments. The Laminar Flow Pass Box from AMBER offers a safe and credible clean transfer method for pharmaceutical industries, laboratory use, and the electronics and food industries.
This Amber Dynamic Pass Box has a unidirectional laminar flow design, together with a high-efficiency HEPA/ULPA filtration unit, and ensures the ISO Class 5 air cleanliness. Constant airflow is quite effective in preventing the infiltration of ambient particles that will create a stable and clean airflow barrier throughout the delivery of items.
This Dynamic Pass-Through Box also includes a UV germicidal lamp that has the effect of efficient sterilization during the transfer of materials, and this is in addition to the air filtration, which is an added advantage to reduce the chances of microbial contamination. Electronic or mechanical interlocks do not allow the dual opening of the two doors, which ensures total isolation between clean and non-clean zones and improves safety and compliance of operation.
he AMBER Laminar Flow Pass Box offers a high degree of effective, reliable, and safe clean delivery, whether it is the transfer of sterile material during the manufacturing of pharmaceutical products or of correct samples during laboratory work. Contact us for customized solutions for our Dynamic Pass Through Box.
Q1: What is the difference between a Laminar Flow Pass Box and a regular pass-through box?
A: Regular pass-through boxes primarily reduce air convection, while the Laminar Flow Pass Box utilizes dynamic circulation and a high-efficiency filtration system to continuously create laminar clean airflow inside, significantly reducing particulate and microbial contamination. It is suitable for applications requiring higher cleanliness levels.
Q2: Does the Dynamic Pass Box need to be in operation continuously?
A: Yes. The Dynamic Pass Box uses a fan and filter to maintain clean air circulation inside, ensuring consistent air cleanliness during operation. Therefore, it is recommended to turn it on before material transfer and keep it running continuously.
Q3: Can the UV lamp in the Dynamic Pass-Through Box be used long-term?
A: The UV lamp in the pass-through box is primarily used for intermittent disinfection and is recommended to be turned on when no material is being transferred. The UV lamp has a limited lifespan, typically around 8,000–10,000 hours, and needs to be replaced regularly based on frequency of use.
